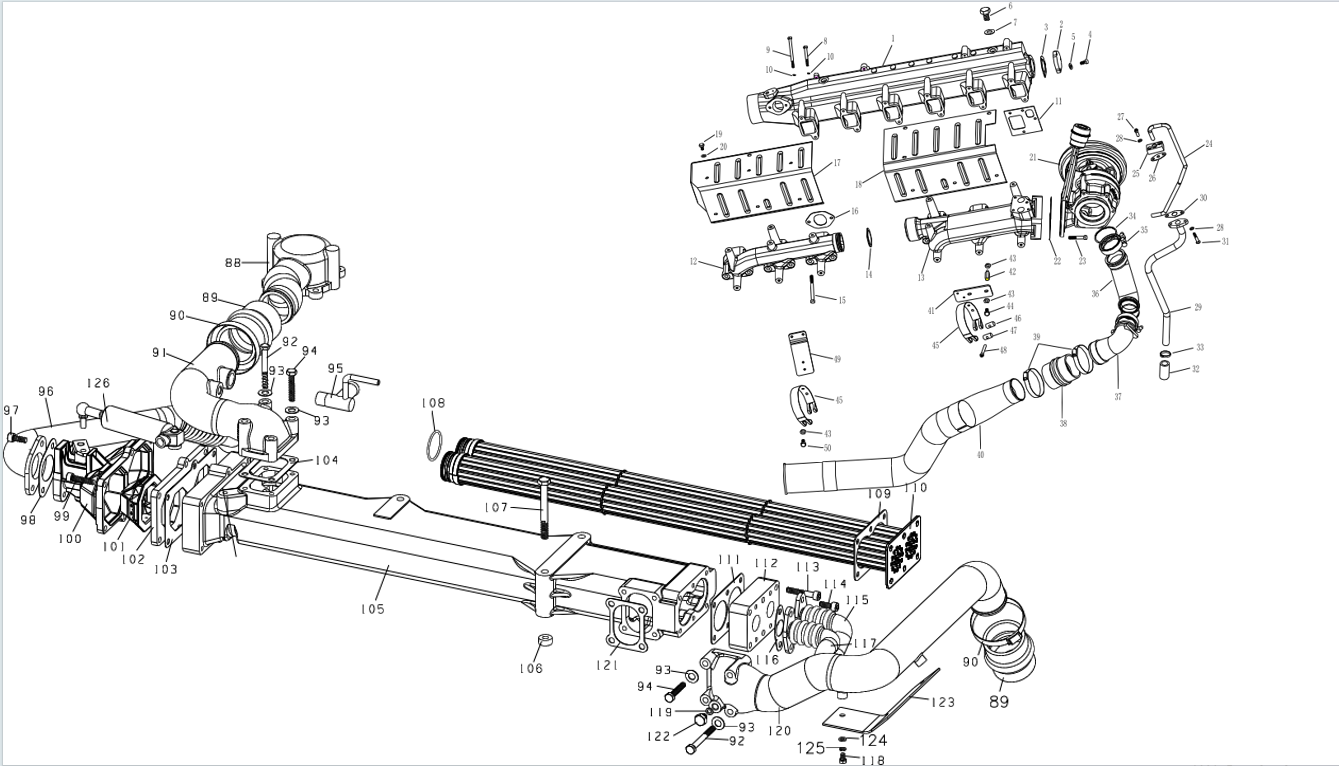

HOWO HEAVY DUTY 2-VALVE EGR DIESEL ENGINE INTAKE MANIFOLD AND EXHAUST MANIFOLD-1

By ALEX-86 16215315999 February 9th, 2026 163 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

-	Intake manifold asm	VG1095110017	1	1	1	1	1
1	Intake manifold	VG1099110017	1	1	1	1	1
2	Cover	VG2600110455	1	1	1	1	1
3	Gasket	VG2600110456	1	1	1	1	1
4	Bolt	90003802432	3	3	3	3	3
5	Spring washer	90003931102	3	3	3	3	3
6	Bolt plug	90017020002	2	2	2	2	2
7	Gasket	190003098020	2	2	2	2	2
8	Bolt	190003800465	6	6	6	6	6
9	Bolt	VG14110064	6	6	6	6	6
10	Spring washer	90003932023	12	12	12	12	12
11	Gasket	VG1500110024	6	6	6	6	6
12	Exhaust manifold (front)	VG1557110111	1	1	1	1	1
13	Exhaust manifold(rear)	VG1557110112	1	1	-	-	1
	Exhaust manifold(rear)	VG1095110012	-	-	1	1	-
14	Seal ring	VG1540110005	4	4	4	4	4
15	Bolt	VG2600111052	12	12	12	12	12
16	Gasket	VG1560110111	6	6	6	6	6
17	Insulation cover (front)	VG1557110063A	1	1	1	1	1
18	Insulation cover (rear)	VG1557110064A	1	1	1	1	1
19	Bolt	VG2600110963	10	10	10	10	10
20	Gasket	190003937282	10	10	10	10	10
21	Turbo charger	VG1092110096	1	1	-	-	1
	Turbo charger	VG1095110096	-	-	1	1	-
22	Gasket	VG1500119011	1	1	-	-	1
	Gasket	VG1560110210	-	-	1	1	-
23	Bolt	VG1560110241	4	4	4	4	4
24	Hose	VG1092110044	1	1	-	-	1
	Hose	VG1092110024	-	-	1	1	-
	Bush	90003559563	2	2	2	2	2
	Nut	90003559513	2	2	2	2	2
25	Flange	VG1560110152	1	1	1	1	1
26	Gasket	VG609E110050	1	1	1	1	1
27	Bolt	90003862428	2	2	2	2	2
28	Retaining ring	VG188250083	4	4	4	4	4
29	Oil return tube assembly	VG1560079006	1	1	-	-	1
	Oil return tube assembly	VG1560079003	-	-	1	1	-
30	Gasket	VG2600110048	1	1	1	1	1
31	Bolt	VG1460070014	2	2	2	2	2
32	Hose	VG2600070071	1	1	1	1	1
33	Hose clamp	Q67632	2	2	2	2	2
34	O-ring	VG190320035	2	2	2	2	2
35	Clamp	VG1560110226	2	2	2	2	2
36	Connecting pipe	VG2600111141	1	1	1	1	1
37	Connecting pipe	VG1800110045	1	1	1	1	1
38	Hose	VG1047110103	1	1	1	1	1
39	Hose clamp	VG9003980003	2	2	2	2	2
40	Pipe	VG1047110104	1	1	1	1	1
41	Mounting plate	VG1047110105	1	1	1	1	1
42	Bolt	VG1540110211	2	2	2	2	2
43	Spring washer	90003932023	10	10	10	10	10
44	Bolt	190003802411	4	4	4	4	4
45	Hose clamp	VG1560110021	2	2	2	2	2
46	Clamping pin	VG1700550013	2	2	2	2	2
47	Clamping pin	VG209190017	2	2	2	2	2
48	Bolt	90003862462	2	2	2	2	2
49	Support	VG1047110102	1	1	1	1	1
50	Bolt	190003802419	4	4	4	4	4
88	EGR water outlet connecting piece	VG1557110053	1	1	1	1	1
89	EGR coolant hose	AZ1557060013	2	2	2	2	2
90	Hose clip	90003989311	4	4	4	4	4
91	EGR cooler water outlet	VG1557110055	1	1	1	1	1
92	M8×70 Blot	Q150B0870	4	4	4	4	4
93	Fluted spring washer	90003932023	8	8	8	8	8
94	M8×50 Bolt	Q150B0850	4	4	4	4	4
95	Pipe connector	VG1557060010	1	1	1	1	1
96	EGR exhaust pipe	VG1096110014	1	1	1	1	1
97	M8×20 Blot	Q218B0820	4	4	4	4	4
98	Washer	VG1557110038	2	2	2	2	2
99	M8×35 Bolt	Q218B0835	6	6	6	6	6
100	EGR exhaust valve assembly	AZ1557110018	1	1	1	1	1
101	EGR non-return valve assembly	AZ1557110009	2	2	2	2	2
102	EGR cooler valve flange	AZ1557110019	1	1	1	1	1
103	EGR cooler valve flange washer	VG1557110020	1	1	1	1	1
104	EGR pipe washer	VG1557110035	1	1	1	1	1
105	EGR cooler case	AZ1557110017A	1	1	1	1	1
106	Heat insulation cover washer	VG1557110054	3	3	3	3	3
107	M10X92 head-resistant bolt	VG1557110052	3	3	3	3	3
108	O-ring	VG1557110065	4	4	4	4	4
109	Washer	VG1557110037	1	1	1	1	1
110	EGR cooling pipe assembly	VG1557110016A	1	1	1	1	1
111	Washer	VG1557110034	1	1	1	1	1
112	EGR cooler air intake flange	VG1557110018	1	1	1	1	1
113	M8×45 head-resistant bolt	VG1557110051	6	6	6	6	6
114	M8×20 head-resistant bolt	VG1557110050	8	8	8	8	8
115	EGR air intake pipe	VG1557110058A	2	2	2	2	2
116	EGR washer	VG1557110036	4	4	4	4	4
118	Bolt	Q150B0610	2	2	2	2	2
119	Composite sealing washer	VG9003080003
120	EGR cooler water inlet	VG1557110015A
121	EGR coolant pipe washer	VG1557110056
122	Screw plug	Q617B14
123	EGR heat insulation cover	VG1557110061
124	Sealing washer	Q72306T3M
125	Sealing washer	Q40306
