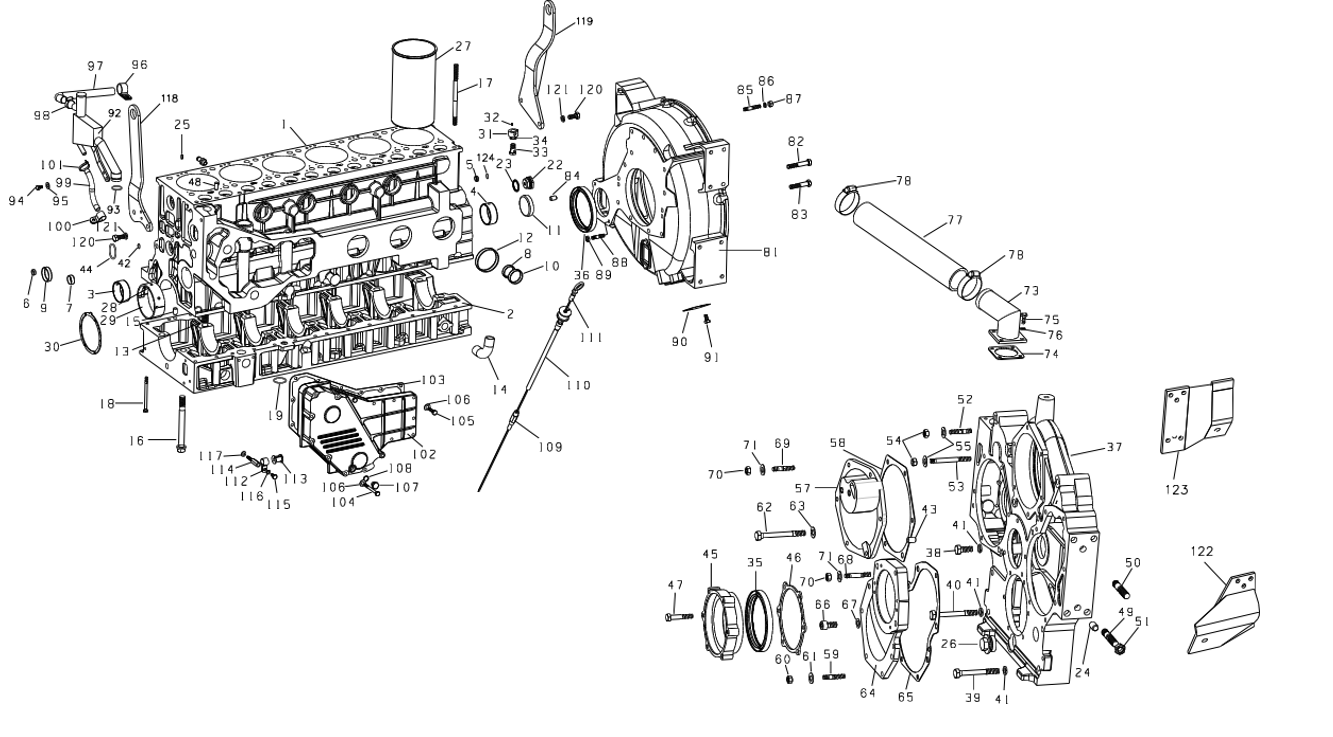

HOWO HEAVY DUTY 2-VALVE EGR DIESEL ENGINE CYLINDER BLOCK-1

By ALEX-86 16215315999 February 4th, 2026 144 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

-	Cylinder block ass	AZ1095010033	1	1	1	1	1
1	Cylinder block	AZ1095010031	1	1	1	1	1
2	Crankcase	61500010366C	1	1	1	1	1
3	Bush	VG2600010990	1	1	1	1	1
4	Bush	VG1560010029	6	6	6	6	6
5	Core plug	90003984080	1	1	1	1	1
6	Core plug	90003989480	1	1	1	1	1
7	Core plug	90003989204	1	1	1	1	1
8	Core plug	90003989289	4	4	4	4	4
9	Core plug	90003982121	4	4	4	4	4
10	Core plug	90003989215	4	4	4	4	4
11	Core plug	90003989288	1	1	1	1	1
12	Core plug	90003989210	9	9	9	9	9
13	Bolt	VG14010217	1	1	1	1	1
14	Pipe	VG2600070097	1	1	1	1	1
15	Dowel pin	90003901604A	2	2	2	2	2
	Dowel pin	Q5211220	1	1	1	1	1
16	Bolt	VG14010114	13	13	13	13	13
17	Stud	VG1500010185	21	21	21	21	21
18	Bolt	90003802493	27	27	27	27	27
19	Gasket	VG1400010032	2	2	2	2	2
22	Bolt	VG1460070011	1	1	1	1	1
23	Gasket	VG2600010735	1	1	1	1	1
24	Dowel pin	90003900085	4	4	4	4	4
25	Sleeve	90003909626	6	6	6	6	6
26	Bolt	90003962051	1	1	1	1	1
27	Liner	VG1540010006	6	6	6	6	6
28	Main bearing	VG1540010021	7	7	7	7	7
29	Main bearing	VG1540010022	7	7	7	7	7
30	Thrust bearing	VG1500010125	2	2	2	2	2
31	Spraying nozzle ass	VG1560010090	6	6	-	-	6
	Spraying nozzle ass	VG2600010659	-	-	6	6	-
32	Spring dowel pin	90003909603	6	6	6	6	6
33	Bolt	90003962621	6	6	6	6	6
34	Gasket	90003098015	6	6	6	6	6
35	Front gasket	VG1047010038	1	1	1	1	1
36	Back gasket	VG1047010050	1	1	1	1	1
37	Gear case	61557010008	1	1	1	1	1
38	Bolt	90003802523	3	3	3	3	3
39	Bolt	90003802561	6	6	6	6	6
40	Bolt	90003802571	1	1	1	1	1
41	Spring washer	90003931122	9	9	9	9	9
42	Gasket	VG288730061	1	1	1	1	1
43	Dowel pin	90003901507	2	2	2	2	2
44	Gasket	VG61000010134	1	1	1	1	1
45	Front gasket bracket	VG2600010928	1	1	1	1	1
46	Joint	VG2600010934	1	1	1	1	1
47	Bolt	90011260039	6	6	6	6	6
48	Spring dowel pin	90003901604	6	6	6	6	6
49	Stud	90003813628	6	6	6	6	6
50	Stud	90003813638	2	2	2	2	2
51	Nut	90003888453	8	8	8	8	8
52	Stud	90003813429	3	3	3	3	3
53	Stud	90003813470	2	2	2	2	2
54	Nut	90003871252	6	6	6	6	6
55	Spring washer	90003932023	8	8	8	8	8
57	Cover	VG2600010830	1	1	1	1	1
58	Joint	VG14010040	1	1	1	1	1
59	Stud	90003813429	5	5	5	5	5
60	Nut	90003871252	5	5	5	5	5
61	Spring washer	90003932023	5	5	5	5	5
62	Bolt	90003802576	1	1	1	1	1
63	Spring washer	90003932024	1	1	1	1	1
64	Cover	VG1500010008A	1	1	1	1	1
65	Joint	VG14010070	1	1	1	1	1
66	Bolt	90003862524	2	2	2	2	2
67	Spring washer	90003932025	2	2	2	2	2
68	Stud	90003813443	1	1	1	1	1
69	Stud	90003813429	5	5	5	5	5
70	Nut	90003871252	6	6	6	6	6
71	Spring washer	90003932023	6	6	6	6	6
72	Dowel pin	90003901507	2	2	2	2	2
73	Nozzle	VG1560010028	1	1	1	1	1
74	Joint	VG14010086	1	1	1	1	1
75	Bolt	90003802321	4	4	4	4	4
76	Spring washer	90003931082	4	4	4	4	4
77	Hose	VG1500010079	2	2	2	2	2
78	Hose clip	90003989306	2	2	2	2	2
79	Nozzle	VG2600010919	1	1	1	1	1
80	Cover	VG2600010489	1	1	1	1	1
81	Flywheel housing	AZ1557010012	1	1	1	1	1
82	Bolt	VG1500010062	7	7	7	7	7
83	Bolt	VG1500010101	6	6	6	6	6
84	Dowel pin	90003901604	2	2	2	2	2
85	Stud	90003813537	12	12	12	12	12
86	Spring washer	90003931122	12	12	12	12	12
87	Nut	90003871305	12	12	12	12	12
88	Stud	90003813527	3	3	3	3	3
89	Nut	90003888452	3	3	3	3	3
90	Cover	VG1800210011	1	1	1	1	1
91	Bolt	90003802511	2	2	2	2	2
92	Oil separator	VG1557010015	1	1	1	1	1
93	O-ring	Q734B2650265	1	1	1	1	1
94	Bolt	90003802402	2	2	2	2	2
95	Spring washer	90003932023	2	2	2	2	2
96	Clamp	VG31100040007	2	2	2	2	2
97	Hose	VG12G00040038	1	1	1	1	1
98	Hose clip	90003989301	3	3	3	3	3
99	Hose	VG1500010174	1	1	1	1	1
100	Clamp	VG609E110049	1	1	1	1	1
101	Hose clip	90003171356	3	3	3	3	3
102	Cover	VG1557010014	1	1	1	1	1
103	Joint	VG1540010015A	1	1	1	1	1
104	Bolt	90003800467	7	7	7	7	7
105	Bolt	90003802437	7	7	7	7	7
106	Spring washer	90003932023	14	14	14	14	14
107	Bolt	90003962020	1	1	1	1	1
108	Washer	90003098014	1	1	1	1	1
109	Pipe ass	VG2600010709	1	1	1	1	1
110	Gauge	VG2600010705	1	1	1	1	1
111	Gauge	VG1500010600	1	1	1	1	1
112	Clamp piece	VG2600010647	1	1	1	1	1
113	Hose clip	VG2600010638	1	1	1	1	1
114	Lip block	VG1500010031	1	1	1	1	1
115	Bolt	90003802411	1	1	1	1	1
116	Spring washer	90003931102	1	1	1	1	1
117	Washer	90003930521	1	1	1	1	1
118	Flying rings	VG1557010012	1	1	1	1	1
119	Flying rings	VG1557010013	1	1	1	1	1
120	Bolt	Q150B1230	4	4	4	4	4
121	Spring washer	90003931142	4	4	4	4	4
122	Support	VG1095060006	1	1	1	1	1
	Support	VG1095060116	1*	1*	1*	1*	1*
123	Support	VG1095060009	1	1	1	1	1
	Support	VG1095060119	1*	1*	1*	1*	1*
124	Sealing ring	VG407010046	1	1	1	1	1
