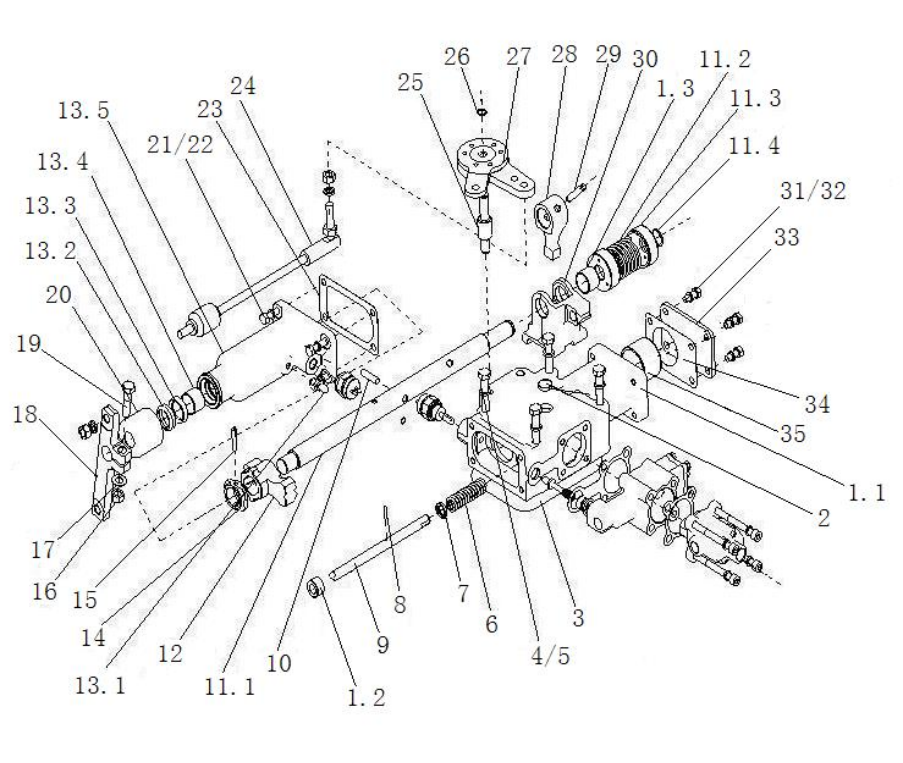

catalogue-HOWO-NEW MODEL-TRANSMISSION-10
By ALEX-86 16215315999
May 26th, 2025
24 views
we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality partsWhatsapp: +0086 16215315999
| 1 |
AZ2203210030 |
Small cover housing assembly |
1 |
Transmission |
| 1 |
WG2222210038 |
Small cover housing(10 gears, double rod) |
1 |
Transmission |
| 1 |
WG2229210001 |
Bushings |
1 |
Transmission |
| 1 |
WG2229002520 |
Composite bushing SF2 25×28×20 |
1 |
Transmission |
| 1 |
AZ9007970001 |
LOCTITE binder |
1 |
Transmission |
| 2 |
Q72220 |
Bowl-shaped plug piece |
1 |
Transmission |
| 3 |
WG2229210145 |
Small cover gasket |
1 |
Transmission |
| 4 |
WG9003801086 |
Combined gluing bolt Q1421085 |
2 |
Transmission |
| 5 |
WG9003801090 |
Combined gluing bolt Q1421090 |
2 |
Transmission |
| 6 |
WG2229210033 |
Self-locking spring |
1 |
Transmission |
| 7 |
WG2229210011 |
Spring stopper |
1 |
Transmission |
| 8 |
AZ9003343178 |
Needle roller P3×17.8 |
1 |
Transmission |
| 9 |
WG2212210005 |
Self-locking pin |
1 |
Transmission |
| 10 |
WG2229210012 |
Drive pin |
1 |
Transmission |
| 11 |
AZ2203210025 |
Shift shaft assembly |
1 |
Transmission |
| 11 |
WG2212210007 |
Shift shaft (double lever) |
1 |
Transmission |
| 11 |
WG2229210021 |
Centering spring (low gear side) |
1 |
Transmission |
| 11 |
AZ2229210007 |
Centering seat ring |
2 |
Transmission |
| 11 |
Q43120 |
Shaft elastic retaining ring |
1 |
Transmission |
| 12 |
WG2229210008 |
Sector self-locking block |
1 |
Transmission |
| 13 |
AZ2203210008 |
Small cover end cap assembly (double rod) |
1 |
Transmission |
| 13 |
Q901 |
Normally open vent plug |
1 |
Transmission |
| 13 |
WG9003072502 |
End cap outer oil seal |
1 |
Transmission |
| 13 |
WG9003072501 |
Inner oil seal of end cap |
1 |
Transmission |
| 13 |
WG2229002520 |
Composite bushing SF2 25×28×20 |
1 |
Transmission |
| 14 |
WG2222210034 |
Small cap end cap (double rod rocker arm side) |
1 |
Transmission |
| 14 |
WG2229210014 |
Sensor drive ring |
1 |
Transmission |
| 15 |
Q5280632 |
Elastic cylindrical pin |
1 |
Transmission |
| 16 |
Q340B10T13F2 |
I-type hexagonal nut |
1 |
Transmission |
| 17 |
Q41810 |
Wave elastic washer |
1 |
Transmission |
| 18 |
WG2214210004 |
Rocker arm |
1 |
Transmission |
| 19 |
Q150B1040TF2 |
Hexagon head bolts |
1 |
Transmission |
| 20 |
WG2229210026 |
Dust cover |
1 |
Transmission |
| 21 |
Q150B0825 |
Hexagon head bolts |
4 |
Transmission |
| 22 |
Q40308 |
Spring washers |
4 |
Transmission |
| 23 |
WG2229210143 |
End cap gasket |
1 |
Transmission |
| 24 |
WG2229210041 |
Support rod assembly |
1 |
Transmission |
| 25 |
WG2229270003 |
Gear Selector Support Shaft |
1 |
Transmission |
| 26 |
Q43112 |
Elastic Retaining Ring for Shaft |
1 |
Transmission |
| 27 |
WG2229210040 |
Shift lever assembly |
1 |
Transmission |
| 28 |
WG2214210103 |
Shift head |
1 |
Transmission |
| 29 |
WG2229210009 |
Pins |
1 |
Transmission |
| 30 |
WG2214210010 |
Interlocking Fork |
1 |
Transmission |
| 31 |
Q150B0820 |
Hexagon head bolts |
4 |
Transmission |
| 32 |
Q40308 |
Spring washers |
4 |
Transmission |
| 33 |
WG2229210034 |
Small cap end caps |
1 |
Transmission |
| 34 |
WG2229210146 |
Paper gaskets for small cap end caps |
1 |
Transmission |
| 35 |
WG2229210029 |
Spacer ring |
1 |
Transmission |
| 37 |
WG2229210036 |
Positioning guide |
2 |
Transmission |
| 38 |
AZ2203210040+001 |
10-stop small cover assembly (double rod) (with air-controlled locking valve assembly, double H valve assembly, etc.) |
1 |
Transmission |
