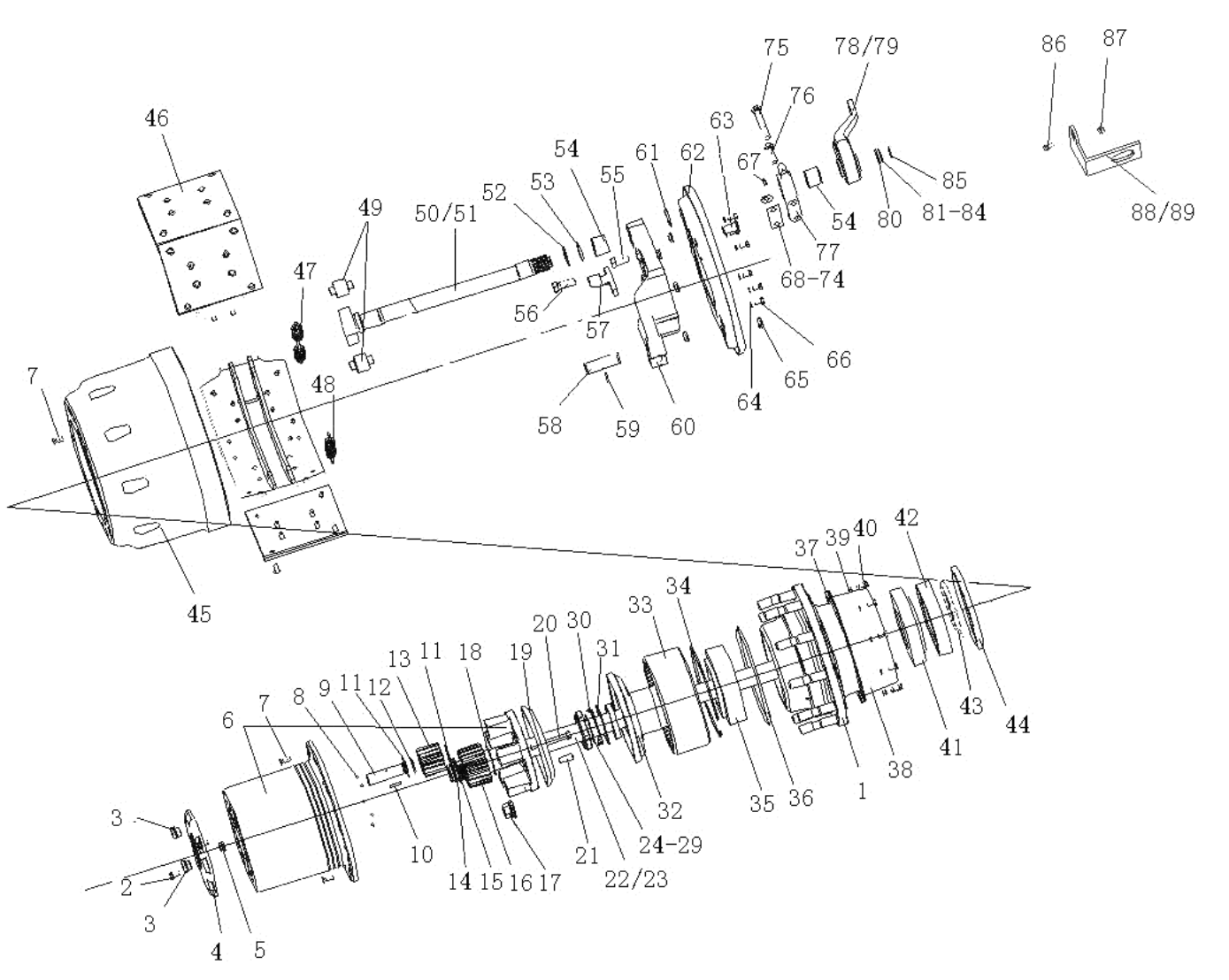

catalogue-HOWO-NEW MODEL-DRIVE AXLE-4
By ALEX-86 16215315999
May 27th, 2025
116 views
we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality partsWhatsapp: +0086 16215315999
| 1 |
199112340010 |
Rear Hub Assembly |
2 |
Drive axle |
| 1.1 |
WG9112340009 |
Rear Hub |
1 |
Drive axle |
| 2 |
ZQ150B1018 |
Hexagon head bolts |
20 |
Drive axle |
| 3 |
WG9231340002 |
Cylindrical head socket head cap screw assembly |
4 |
Drive axle |
| 4 |
WG9231340001 |
End Cap |
2 |
Drive axle |
| 5 |
WG9012340011 |
End Cap Top Pin |
2 |
Drive axle |
| 6 |
199112340029 |
Planetary carrier assembly |
1 |
Drive axle |
| 7 |
Q2541025 |
Cross recessed countersunk head screws |
8 |
Drive axle |
| 8 |
190003330148 |
Steel ball--8.0000 G200 b-GB308 |
5 |
Drive axle |
| 9 |
WG9012340004 |
Planetary wheel shafts |
5 |
Drive axle |
| 10 |
WG99-934-013 |
Needle roller bearing supply and credit diagram |
10 |
Drive axle |
| 11 |
WG9012340075 |
Planetary wheel spacer |
10 |
Drive axle |
| 12 |
WG9012340077 |
Washers |
5 |
Drive axle |
| 13 |
WG9012340122 |
Planetary wheel (Z=16) |
5 |
Drive axle |
| 14 |
190003933351 |
Elastic retaining rings for shafts |
2 |
Drive axle |
| 15 |
WG880 410097 |
Washers |
2 |
Drive axle |
| 16 |
WG9012340005 |
Sun wheel(Z=23) |
2 |
Drive axle |
| 17 |
WG9003884160 |
Wheel nut |
20 |
Drive axle |
| 18 |
WG9012340076 |
Sun wheel washer |
2 |
Drive axle |
| 19 |
WG880420027 |
Planetary carrier oil retaining disk |
1 |
Drive axle |
| 20 |
Q151C1295TF2 |
Hexagon head bolts |
5 |
Drive axle |
| 21 |
190003901704 |
Garden post pins |
5 |
Drive axle |
| 22 |
WG9231340223 |
Half shaft (left) |
1 |
Drive axle |
| 23 |
WG9231340224 |
Half shaft (right) |
1 |
Drive axle |
| 32 |
WG9112340021 |
Gear ring holder assembly |
2 |
Drive axle |
| 33 |
WG9012340121 |
Inner gear ring (Z=57) |
2 |
Drive axle |
| 34 |
WG880420014 |
Retaining ring for shaft |
2 |
Drive axle |
| 35 |
WG9981032222 |
Tapered roller bearing 32222 |
2 |
Drive axle |
| 36 |
WG9012340029 |
Seal ring |
4 |
Drive axle |
| 37 |
WG9012340020 |
Sealing gasket |
2 |
Drive axle |
| 39 |
Q40308 |
Spring washers |
20 |
Drive axle |
| 40 |
ZQ150B0816 |
Hexagon head bolts M8 |
20 |
Drive axle |
| 41 |
WG9231030222 |
Tapered roller bearings 30222 |
2 |
Drive axle |
| 44 |
WG9981340213 |
Shaft seal |
2 |
Drive axle |
| 45 |
WG9112340006 |
Rear brake drum |
2 |
Drive axle |
| 46 |
AZ9231340200 |
Brake shoe with lining assembly |
4 |
Drive axle |
| 46.1 |
AZ9231340203 |
Brake shoe assembly |
1 |
Drive axle |
| 46.3 |
WG9231340068 |
Rivet |
16 |
Drive axle |
| 47 |
WG9231342015 |
Return Spring |
2 |
Drive axle |
| 48 |
WG9112340049 |
Return Spring |
4 |
Drive axle |
| 49 |
WG9000340027 |
Roller |
4 |
Drive axle |
| 50 |
WG9231340226 |
Brake camshaft (left) |
1 |
Drive axle |
| 51 |
WG9231340227 |
Brake camshaft (right) |
1 |
Drive axle |
| 52 |
WG880440010 |
Additional gasket |
4 |
Drive axle |
| 53 |
WG880340023 |
O-ring seal |
2 |
Drive axle |
| 55 |
ZQ151B1635TF2 |
Hexagon head bolts M16*1.5*35 |
16 |
Drive axle |
| 56 |
ZQ151B1645TF2 |
Hexagon head bolt M16*1.5 |
4 |
Drive axle |
| 57 |
AZ9231340556 |
ABS sensor bracket |
1 |
Drive axle |
| 58 |
199000340064 |
Pivot pin |
4 |
Drive axle |
| 59 |
Q5280624 |
Elastic cylindrical pin |
4 |
Drive axle |
| 60 |
AZ9231340562 |
Brake base plate |
1 |
Drive axle |
| 61 |
190003933300 |
Elastic retaining ring for shaft |
2 |
Drive axle |
| 63 |
WG9112340010 |
ABS Sensor Output Protector |
2 |
Drive axle |
| 64 |
Q40308 |
Spring washers |
12 |
Drive axle |
| 66 |
ZQ150B0816 |
Hexagon head bolt M8 |
12 |
Drive axle |
| 67 |
AZ9003963030 |
Grease nipple assembly (AM8*1 D71412) |
4 |
Drive axle |
| 67.1 |
AZ9003963010 |
Grease nipple cap |
1 |
Drive axle |
| 67.2 |
190003963112 |
Metric tapered thread grease nipple |
1 |
Drive axle |
| 68 |
WG880340031 |
Adjustment spacer (Thick 0.1) |
1 |
Drive axle |
| 69 |
WG880340032 |
Adjustment shim (0.15 thick) |
1 |
Drive axle |
| 70 |
WG880340033 |
Adjustment shim (0.4 thick) |
1 |
Drive axle |
| 71 |
WG880340034 |
Adjusting Gasket (Thick 1.0) |
1 |
Drive axle |
| 72 |
WG3809470031 |
Adjustment Gasket |
1 |
Drive axle |
| 73 |
WG3809470032 |
Adjustment Shims |
1 |
Drive axle |
| 74 |
WG3809470033 |
Adjustment shims |
1 |
Drive axle |
| 75 |
ZQ151B1490 |
Hexagon head bolts M14*1.5 |
2 |
Drive axle |
| 80 |
WG880340022 |
Washers |
2 |
Drive axle |
| 81 |
WG80 320028 |
Adjustment washers |
1 |
Drive axle |
| 82 |
WG80 320029 |
Adjustment washers |
1 |
Drive axle |
| 83 |
WG80 320030 |
Adjustment washers |
1 |
Drive axle |
| 84 |
WG80 320046 |
Adjustment washers |
1 |
Drive axle |
| 85 |
190003933116 |
Spring retainers for shafts |
2 |
Drive axle |
| 90 |
WG9231340318 |
Oil retaining disk |
2 |
Drive axle |
