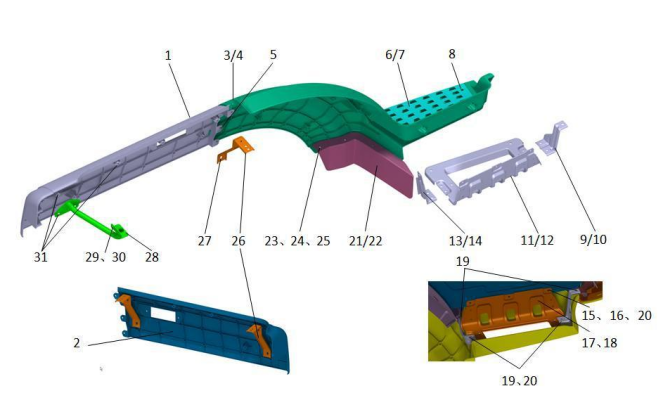

catalogue-HOWO-NEW MODEL-CABS-3

By ALEX-0086 16215315999 May 24th, 2025 22 views

1	WG1672230223	Left rear fender panel	1	cabs
2	WG1672230224	Right rear fender panel	1	cabs
3	WG1671230203	Left front fender panel (H)	1	cabs
4	WG1671230204	Right front fender panel (H)	1	cabs
5	WG1642930620	Cross recessed pan head screw with spring washer and large washer assembly (refer to Q2140620)	4	cabs
6	WG1671230208	Left fender anti-slip step (H76)	1	cabs
7	WG1671230209	Right fender anti-slip step (H76)	1	cabs
8	WG1664930021	Stainless steel cross recessed countersunk head screw M8*20	8	cabs
9	WG1671230263	Left step front hanger (H76)	1	cabs
10	WG1671230264	Right step front hanger (H76)	1	cabs
11	WG1671230261	Left step frame (H76)	1	cabs
12	WG1671230262	Right step frame (H76)	1	cabs
13	WG1671230215	Left step rear hanger (H76)	1	cabs
14	WG1671230216	Right step rear hanger (H76)	1	cabs
15	Q150B0820	Hexagon head bolt	10	cabs
16	Q40208	Large washer	10	cabs
17	Q2204819	Cross recessed pan head tapping screw and flat washer assembly	4	cabs
18	Q40205	Large washer	4	cabs
19	Q1460820	Hexagon head bolt, spring washer and flat washer assembly	8	cabs
20	Q340B08	Hexagon nut, Type 1	14	cabs
21	WG1672230148	Left front mudguard (H77)	1	cabs
22	WG1672230149	Right front mudguard (H77)	1	cabs
23	Q2140620	Cross recessed pan head screw	6	cabs
24	Q40206	Large washer	12	cabs
25	Q340B06	Hexagon nut, Type I	6	cabs
26	WG1671230217	Fender middle bracket (H77)	3	cabs
27	Q2360620	Cross recessed pan head screw, spring washer and flat washer assembly	6	cabs
28	WG1671230218	Left fender rear bracket (H76)	1	cabs
29	Q40206	Large washer	4	cabs
30	Q340B06	Hexagon nut, Type I	4	cabs
31	WG1642930620	Cross recessed pan head screw with spring washer and large washer assembly (refer to Q2140620)	4	cabs
